Except for wide-ranging yield estimates and uncommon escapees’ accounts, North Korean (Democratic Individuals’s Republic of Korea or DPRK) state media experiences and statements are the first sources out there for decoding North Korean nuclear weapon assessments. With the understanding that these official statements are strategic communications as an alternative of technical disclosures,[1] this text revisits North Korea’s six nuclear assessments performed up to now by the lens of: 1) official statements, 2) data on nuclear gadgets within the open-source area, and three) newly printed analysis on weapon packages from different international locations.
By baselining the primary two assessments and the final check, the writer concludes that the three comparatively extra ambiguous assessments (third, fourth and fifth) probably employed extra superior designs than beforehand assessed. Given these parameters, North Korea might have already achieved a stage of miniaturization ample for supply by a variety of missile programs. As such, regardless of ongoing predictions of a seventh nuclear check for the Hwasan-31 tactical nuclear warhead (revealed by state media in 2023 however by no means examined), testing will not be technically crucial.
Nevertheless, if Pyongyang decides to renew nuclear weapons testing, a brand new cycle may not solely contain tactical nuclear warheads, however probably additionally a brand new technology of additional miniaturized gadgets appropriate for extra use circumstances, reminiscent of a number of independently targetable re-entry autos (MIRVs).
Baselining Assessments 1, 2 and 6
The potential design decisions of the primary two nuclear assessments and the sixth check may be deduced from comparatively extra considerable reference factors throughout the Six Get together Talks period and extra specific state media claims and experiences. Whereas there’s a obscure consensus that North Korea doubtless started with a extra superior design than the WWII-era Nagasaki-type weapon, some consultants stay skeptical that it has mastered gas-boosting. As a result of this text locations larger weight on North Korea’s personal statements relatively than on perceived technical constraints, it treats the sixth nuclear check as having integrated gas-boosting, as strongly steered by Pyongyang’s strategic communications. North Korea’s late-mover benefits that would doubtlessly facilitate such an effort are mentioned under within the part on the fourth nuclear check.
Assessments 1 & 2: Levitated Core
The DPRK performed its first nuclear check in 2006. The check had a low estimated yield (estimates starting from lower than 1 kiloton as much as 2 kilotons) as compared with the yield of the primary nuclear assessments of established Nuclear Weapon States (over 20 kilotons). Additional data indicated that the designed yield was solely 4 kilotons.[2] A sub-kiloton yield would counsel that the check was not a fizzle however a hit.[3]
The second DPRK nuclear check in 2009 had an estimated yield of some kilotons, roughly reaching the alleged goal yield of the 2006 check. A state media assertion on the 2009 check mentioned that:
The Democratic Individuals’s Republic of Korea efficiently performed yet another underground nuclear check on Might 25…as requested by its scientists and technicians.
The present nuclear check was safely performed on a brand new greater stage by way of its explosive energy and expertise of its management and the outcomes of the check helped satisfactorily settle the scientific and technological issues arising in additional rising the ability of nuclear weapons and steadily creating nuclear expertise.
The quotes above seem to substantiate that the second nuclear check was aimed to settle “scientific and technological issues” that led to the partial failure of the primary check. It additionally marked the one occasion {that a} nuclear check was mentioned to be “requested” by North Korean scientists and technicians, additional hinting that the 2009 check was a trouble-shooting try.
This reported small goal yield signifies that the DPRK might have began its nuclear testing program with a compact design (compared to a Nagasaki-type gadget), in order that the gadget may very well be made suitable with North Korean ballistic missiles of that period.[4] This small gadget assumption is also supported by the scale estimate of a purported early North Korean implosion gadget inspected by Kim Jong Il (Determine 1). The purported implosion gadget is estimated to have a diameter of roughly ~600 mm.[5]

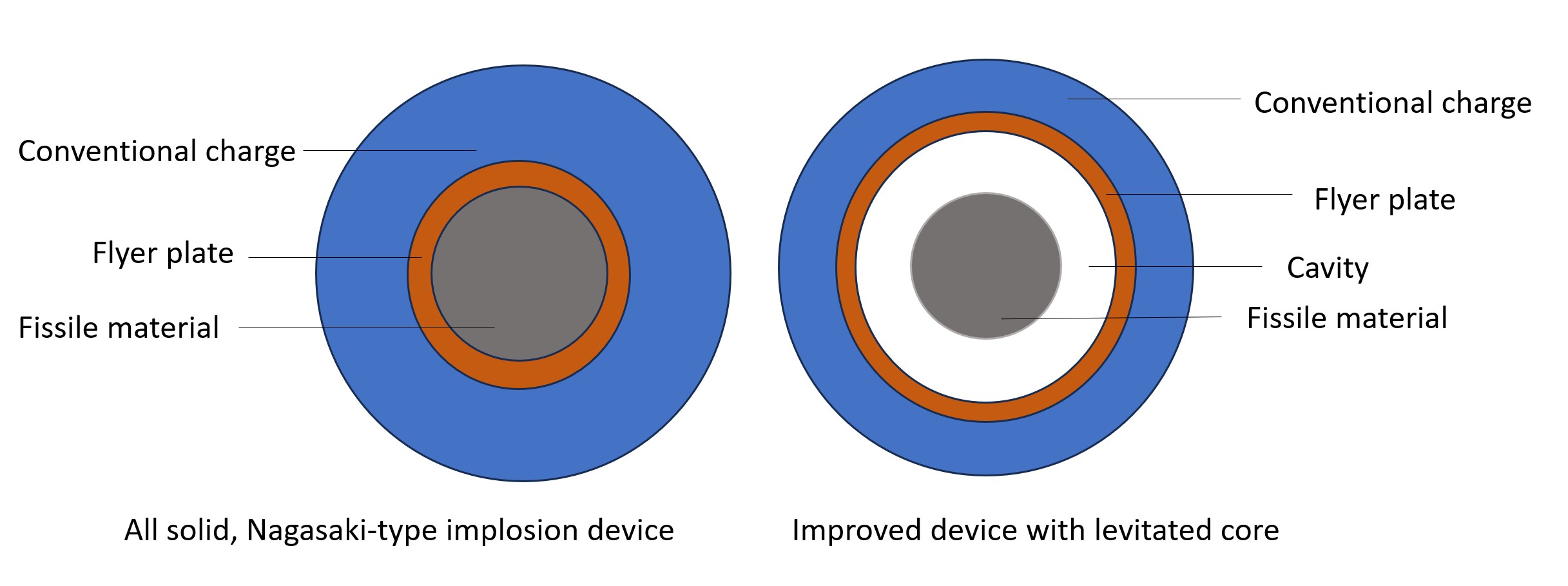

As a late mover, North Korea doubtless selected a levitated core design to make the compression of fissile materials extra environment friendly (Determine 2).
The idea of levitated pit was already effectively understood within the US throughout World Battle II, however was not chosen because of wartime constraints. The US rapidly changed the wartime design of all-solid, Nagasaki-type bombs with the levitated core after a sequence of nuclear assessments performed within the late Forties. Not too long ago printed analysis revealed that China’s first atomic bomb, detonated in 1964, already used a levitated core.[7] In accordance with Iran’s Atomic Archive, the nation’s implosion design, developed between 1999 to 2003, additionally had a levitated core, which made it sufficiently small to be delivered by Iran’s Shahab-3 mid-range ballistic missile (Iranian model of the North Korean Hwasong-7 ballistic missile). Thus, it’s to imagine that North Korea would have chosen a levitated core over the WWII-era Nagasaki-type design, successfully making the bomb smaller and potential to be delivered by North Korean ballistic missiles out there at the moment.[8]
Take a look at 6: Hydrogen Bomb With Fuel-Boosted Major
Following the sixth nuclear check in 2017, the nation’s Nuclear Weapons Institute issued an announcement, saying:
The right success within the check of the H-bomb for ICBM clearly proved that…manufacturing expertise of nuclear weapons of the DPRK has been placed on a excessive stage to regulate its damaging energy in consideration of the targets and functions.
On the identical day of the sixth nuclear check, a separate state media report on Kim Jong Un’s steering on nuclear weaponization acknowledged that:
The H-bomb, the explosive energy of which is adjustable from tens kiloton to tons of kiloton, is a multi-functional thermonuclear nuke with nice damaging energy…
Adjusting yield in response to wants is a particular function of gas-boosted major, through which the yield of a bodily package deal is adjusted by the quantity of deuterium-tritium fuel launched right into a hole core of fissile materials (See Take a look at 3 under).
As well as, the assertion from the Nuclear Weapons Institute additionally seems to explain the detonation sequence of this two-stage thermonuclear weapon with a boosted major:
Symmetrical compression of nuclear cost, its fission detonation and high-temperature nuclear fusion ignition, and the following quickly boosting fission-fusion reactions…have been confirmed…
For reference:
- “Compression of nuclear cost”: Typical explosives implode to compress the fissile materials (nuclear cost) right into a supercritical state.
- “Fission detonation and high-temperature nuclear fusion ignition”: Fissile materials (nuclear cost) undergoes fission, and boosting fuel begins fusion underneath excessive temperature, releasing a flood of neutrons to additional increase the fission of the first.
- “Ensuing quickly boosting fission – fusion reactions”: The boosted fission of the first triggers the fusion of the secondary.
By way of official photos and statements, North Korea clearly claimed that it managed to detonate a complicated thermonuclear weapon, supposed for ICBM supply, within the sixth nuclear check. If true, the North will need to have utilized the assessments in between (Take a look at 3, 4, 5) to realize this technological leap.
The Assessments In Between
If Take a look at 6 concerned a thermonuclear weapon with a gas-boosted major as mentioned above, a minimum of one earlier check will need to have validated gas-boosting (almost certainly Take a look at 4) and probably a previous check validated an unboosted hollow-core design (Take a look at 3). Such comparatively superior designs would have enabled North Korea to supply additional miniaturized warheads appropriate for a wider vary of missiles. The perceived difficulties and benefits facilitating the pursuit of those superior designs are mentioned under.
Take a look at 3: Improved Machine With a Hole Core?
A North Korean official assertion mentioned that the third nuclear check concerned a brand new design with greater yield-to-weight ratio:
The check was performed in a secure and ideal means on a excessive stage with using a smaller and lightweight A-bomb in contrast to the earlier ones, but with nice explosive energy…
The precise options of the operate and explosive energy of the A-bomb and all different measurements totally tallied with the values of the design, bodily demonstrating the great efficiency of the DPRK’s nuclear deterrence that has grow to be diversified.
It stays unclear what this new design “in contrast to earlier ones” refers to. The estimated yield of the third check is round 6 to 7 kilotons, roughly doubling the estimated yield of the second check. If the assertion of the bomb being smaller and lighter holds true, the third check would certainly signify a leap ahead in North Korea’s weaponization.

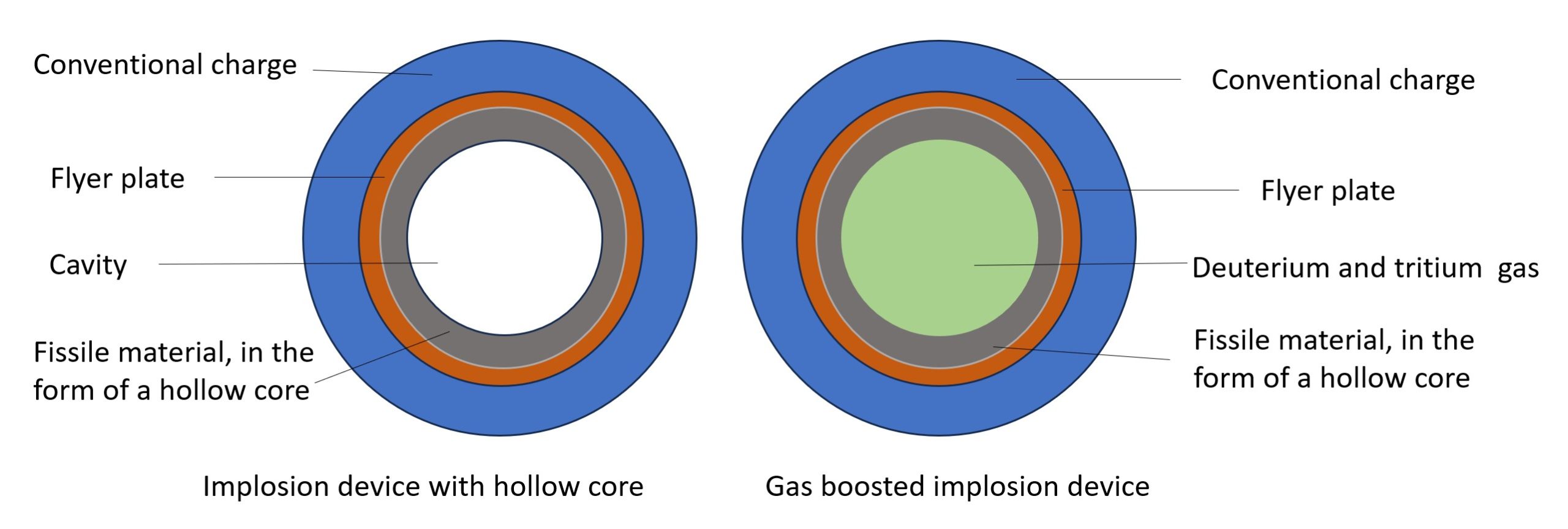

Contemplating that, in response to official North Korean statements, the sixth check concerned a two-stage thermonuclear weapon with a gas-boosted major, a minimum of one gas-boosted fission gadget wanted to be examined in both the fourth and/or the fifth assessments (see under). Thus, one speculation for the third check could be that the North Korean engineers examined a hole core design as a bridge towards a gas-boosted fission gadget (Determine 3).[9]
Testing a hole core within the third check might sound like a daring speculation. As compared, China, a latecomer in gas-boosting, solely began experimenting with gas-boosted hole cores within the Nineteen Eighties. Nevertheless, vacuum within the cavity not solely permits greater acceleration for fissile materials to crush into itself, but in addition eliminates complicated instability points on the boundary between strong materials and fuel throughout implosion.[10] This perceived simplicity would possibly encourage North Korea to pursue an unboosted hole core in its third check. If right, this may counsel that North Korea was experimenting with extra environment friendly core geometries sooner than beforehand assumed, accelerating its pathway towards gas-boosted designs.
Alternatively, an improved levitated core might have been used within the third check. Such enhancements may embrace the rise of power density of standard explosives and using new, lighter (non-fissile) supplies.
The wording that “DPRK’s nuclear deterrence has grow to be diversified” has led to hypothesis that “diversified” may confer with using extremely enriched uranium, although this can’t be confirmed by worldwide atmospheric monitoring findings. Alternatively, the phrase “diversified” may imply {that a} “smaller and lightweight” implosion gadget may very well be delivered by smaller ballistic missiles (for instance, the ER-SCUD), or that the brand new design “in contrast to earlier ones” diversified the designs of North Korean fission bombs (the “nuclear deterrence”).
Take a look at 4: Introducing Fuel-Boosting
To make the sixth nuclear check profitable, there ought to have been a minimum of one check to validate a gas-boosted implosion gadget among the many third, fourth and fifth assessments. In accordance with the official statements, the fourth nuclear check higher suits this criterion.
In accordance with the official assertion, the fourth nuclear check was of an “H-bomb” (generally understood as a two-stage thermonuclear gadget). Nevertheless, as this check didn’t exhibit a typical H-bomb yield, the opportunity of the examined gadget being a profitable two-stage thermonuclear gadget was met with skepticism and it was speculated {that a} boosted-fission gadget might have been examined as an alternative.
In contrast to in 2017, when the DPRK made the particular declare that it had examined a two-stage thermonuclear gadget, the announcement of this fourth check used rather more ambiguous language (quoted under). This seems to assist suspicions that this check was extra doubtless a boosted-fission gadget.
By way of the check performed with indigenous knowledge, expertise and efforts the DPRK totally proved that the technological specs of the newly developed H-bomb for the aim of check have been correct and scientifically verified the ability of smaller H-bomb.
It’s noteworthy that the assertion explicitly acknowledged that the detonation was performed “for the aim of check” (thus distanced the check from weaponization). The time period “smaller H-bomb” additionally implies that the gadget was not a full-fledged hydrogen bomb in its generally understood time period.
Nonetheless, gas-boosting in itself is a difficult expertise. In contrast to in an unboosted hole core, instability points on the boundary between strong materials and fuel throughout the implosion can’t be prevented. China solely began testing gas-boosted major within the Nineteen Eighties, roughly twenty years after the detonation of its first fission bomb. In accordance with Hui Zhang’s newly-published e book on the technical historical past of China’s weapon packages, the elements resulting in the delay may very well be summarized as follows:
- China put most of its sources into the weaponization of its first-generation hydrogen bomb warheads (all utilizing levitated core for the first), most of that are heavy gadgets with megaton yield and are paired with massive liquid-propellant ballistic missiles (DF-3, DF-4 and DF-5).
- Mao’s Tradition Revolution disrupted and slowed down China’s nuclear weapon packages. After the tip of the Tradition Revolution, China accelerated the event of second-generation warheads and made breakthroughs in gas-boosting within the Nineteen Eighties.
- Testing gas-boosted gadgets required extra sensors to watch and gather information than what China had within the earlier levels. Nevertheless, high quality fiber optic cables turned extensively out there within the Nineteen Eighties, filling this requirement.[11]
- Chinese language designers apparently solely found gas-boosting throughout their very own calculation of bodily fashions in 1979, suggesting a previous lack of open-source data on extra environment friendly design concepts.[12]
Whereas these parts delayed China’s progress towards gas-boosting, they don’t seem to have been points for North Korea’s packages. It’s potential that North Korean designers totally exploited their late-mover benefit to pursue difficult however extra environment friendly designs within the 2010s. If Take a look at 4 validated gas-boosting, this may suggest that North Korea had already mastered the important thing enabling expertise for scalable, miniaturized weapons earlier than 2017.
Kim Jong Un’s March 2016 Inspection
State media reported on March 9, 2016 that Kim Jong Un inspected work for mounting nuclear warheads on ballistic rockets on an unspecified date. Throughout his inspection Kim was briefed on an implosion gadget known as “miniaturized highly effective nuclear warhead with a Korean-style construction of combined cost:”
Praising the nuclear scientists and technicians…he famous it is extremely gratifying to see the nuclear warheads with the Korean-style construction of combined cost satisfactory for immediate thermo-nuclear response. The nuclear warheads have been standardized to be match for ballistic rockets by miniaturizing them, he famous, including this may be referred to as true nuclear deterrent.
It’s unclear what Kim Jong Un meant by “Korean-style construction of combined cost.” Some potentialities embrace: 1) using composite fissile materials, 2) combined standard expenses[13] that provoke the compression of fissile materials, or 3) each standard and fissile materials.
Whereas there is no such thing as a conclusion whether or not the inspected implosion gadget was extra carefully related to the fourth or fifth nuclear check, the next observations might be able to function information factors for this query:
- The time period “thermo-nuclear response” within the report might point out that the gadget inspected was a boosted-fission gadget. Alternatively, it is also understood that this gadget was designed as the first for a two-stage thermonuclear weapon, although at the moment there was no indication that the North was engaged on such a tool.
- The March 2016 report on Kim’s inspection was launched two months after the fourth nuclear check and 6 months previous to the fifth nuclear check. The fifth nuclear check made no point out of “thermonuclear response.”
- The main target of the March 2016 report was Kim Jong Un’s steering on mounting standardized nuclear warheads on varied tactical and strategic ballistic missiles. This focus aligned with the acknowledged purpose of finalizing a standardized warhead within the fifth nuclear check (see under).
- The gadget proven in March 2016 had a dimension just like the first of the two-stage thermonuclear gadget showcased by state media on the event of North Korea’s sixth nuclear check in September 2017 (Determine 4). State media strongly implied that the September 2017 gadget employed a gas-boosted major.
Take a look at 5: Standardization Of Implosion Machine
The official assertion of the fifth check indicated that the check was geared toward finalizing or standardizing an implosion gadget for the Korean Individuals’s Military Strategic Drive. It was additionally the primary time that North Korea explicitly talked about using “varied fissile supplies,” indicating that uranium or a composite core of plutonium and uranium might have been used.
The nuclear check lastly examined and confirmed the construction and particular options of motion of nuclear warhead that has been standardized to have the ability to be mounted on strategic ballistic rockets of the Hwasong artillery items items of the Strategic Drive of the Korean Individuals’s Military in addition to its efficiency and energy…
The standardization of the nuclear warhead will allow the DPRK to supply at will and as many because it needs a wide range of smaller, lighter and diversified nuclear warheads of upper strike energy with a agency maintain on the expertise for producing and utilizing varied fissile supplies. This has undoubtedly placed on the next stage the DPRK’s expertise of mounting nuclear warheads on ballistic rockets.
It’s price noting that state media gave no hints on whether or not the fifth check concerned boosting. The assertion’s expression that standardized warheads allow North Korea to supply “smaller, lighter and diversified nuclear warheads of upper strike energy” displays the important thing factors of the assertion on the third nuclear check (“smaller and lightweight A-bomb” with “nice explosive energy” demonstrating “diversified nuclear deterrence”).
These two factors point out that the fifth nuclear check was probably extra carefully related to the third nuclear check, relatively than a follow-up of the fourth nuclear check. Alternatively, the most important yield among the many first 5 assessments would possibly function a weak signal for gas-boosting, particularly if the fourth check didn’t meet its targets totally.
Potential Nuclear Assessments Timeline
After discussions on the potential growth path of North Korean nuclear gadgets above, a timeline for the nation’s testing program is compiled under (Desk 1).
Conclusions And Implications
Based mostly on 1) interpretations of official statements for every check, 2) out there data on nuclear gadgets within the open supply area, 3) historical past of nuclear packages from different international locations, and 4) North Korea’s appreciable late mover benefit,[14] the writer concludes that the three comparatively extra ambiguous assessments (Take a look at 3, 4, 5) might have employed extra superior designs than beforehand assessed, which embrace a minimum of one gas-boosted gadget and probably an related pure fission gadget with a hole core. These three assessments additional elevated the gadgets’ yield-to-weight ratio, ultimately resulting in the check of a comparatively compact, two-stage thermonuclear bomb in September 2017 (Take a look at 6).
These conclusions would have the next implications:
- North Korea is ready to mount compact nuclear gadgets on its strategic missile programs.
- If previous nuclear assessments have been performed on comparatively excessive technological bases as mentioned above, North Korea might have grow to be assured sufficient in its capacity to scale down the yield for a comparatively small and easy tactical nuclear weapon,[15] such because the Hwasan-31 (revealed by state media in March 2023 however by no means examined[16]) with out additional testing.
- Virtually 9 years have handed since North Korea’s final nuclear check. Throughout this era, the North is more likely to have continued nuclear weapon analysis utilizing non-fissile supplies. Breakthroughs in standard expenses and different non-fissile materials elements may considerably cut back the general weight and dimension of nuclear gadgets, facilitating supply by smaller missiles and a number of reentry-vehicles. If the North Korean management decides to start out one other testing cycle, the assessments may not solely validate a tactical nuclear warhead, but in addition contain a subsequent technology of North Korean warheads appropriate for extra use circumstances, reminiscent of a number of independently targetable re-entry autos.
